Tizen OS 📺

Requirements

1. The TV must be a Tizen-enabled digital signage commercial display.
2. A stable and reliable internet connection is essential.

How to Install the Player App on Tizen OS 📺

Steps to Install:-

1. ⚡ Power ON the TV.

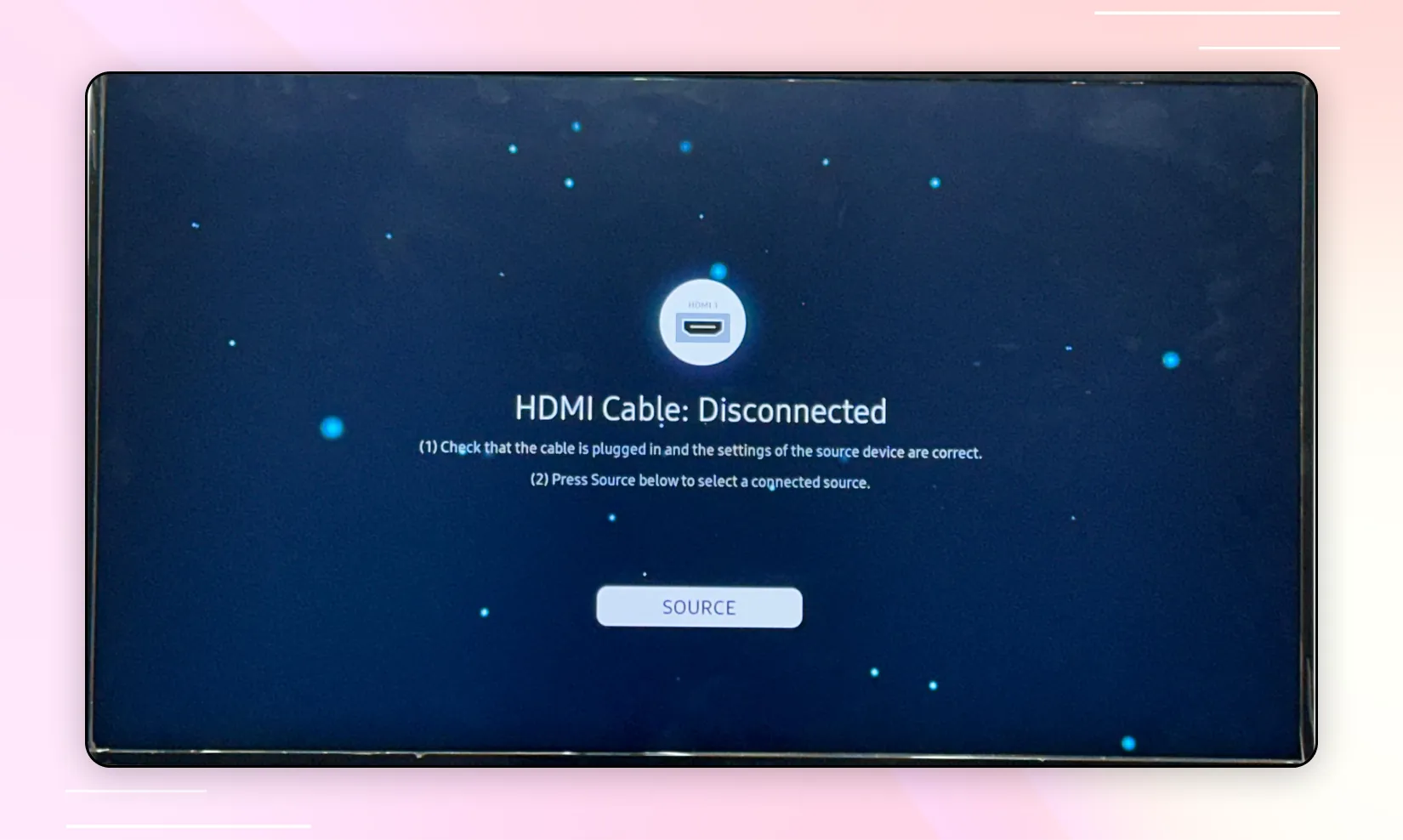

   Ensure the TV is properly connected to a power source and switched on. If connected via HDMI, click on the Source button.
2. 🏠 Click the Home Icon.
   Press the Home button on your remote.

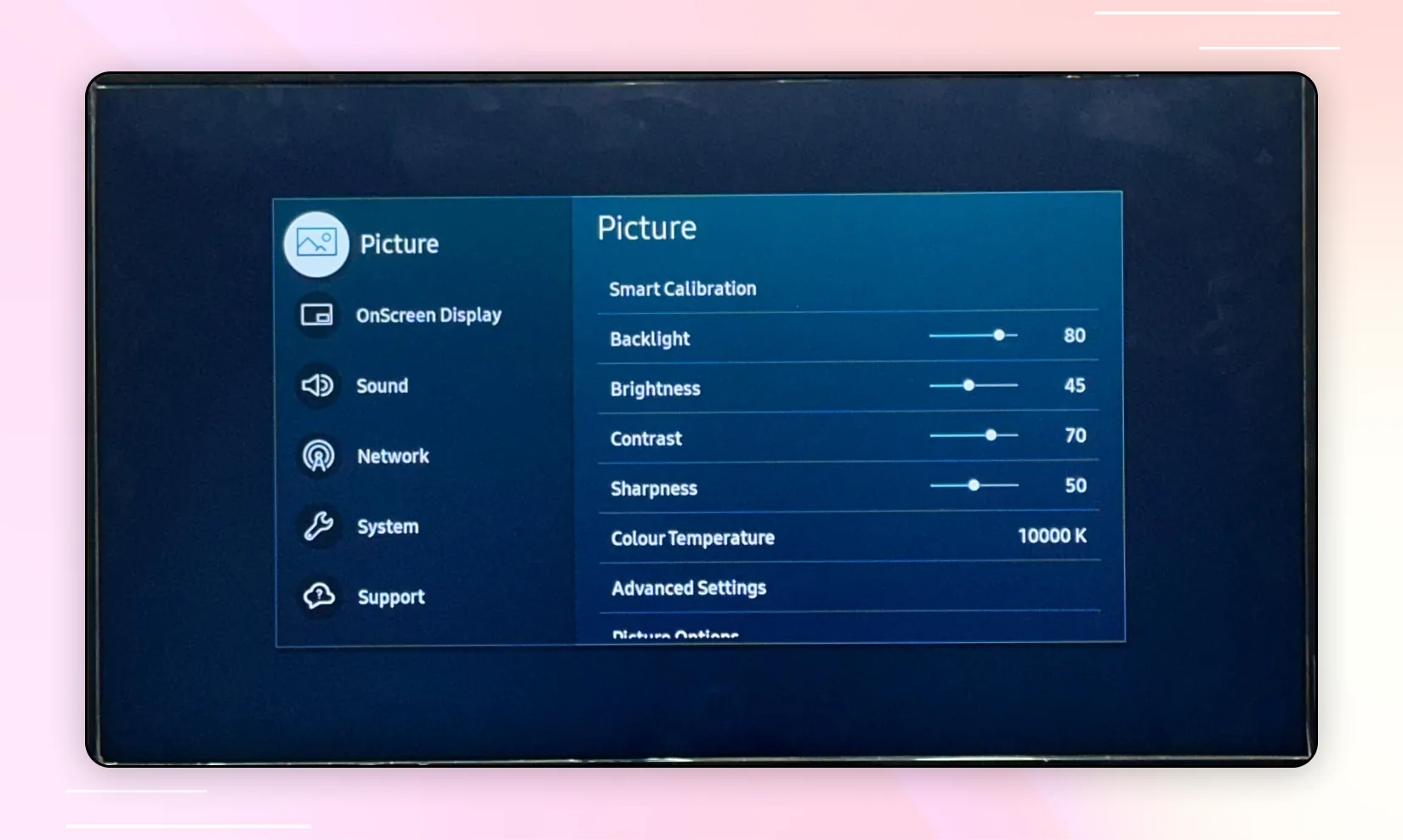

3. 📋 Access the Menu.
   Click the Menu button to open the settings.



4. 🛠️ Navigate to Support.

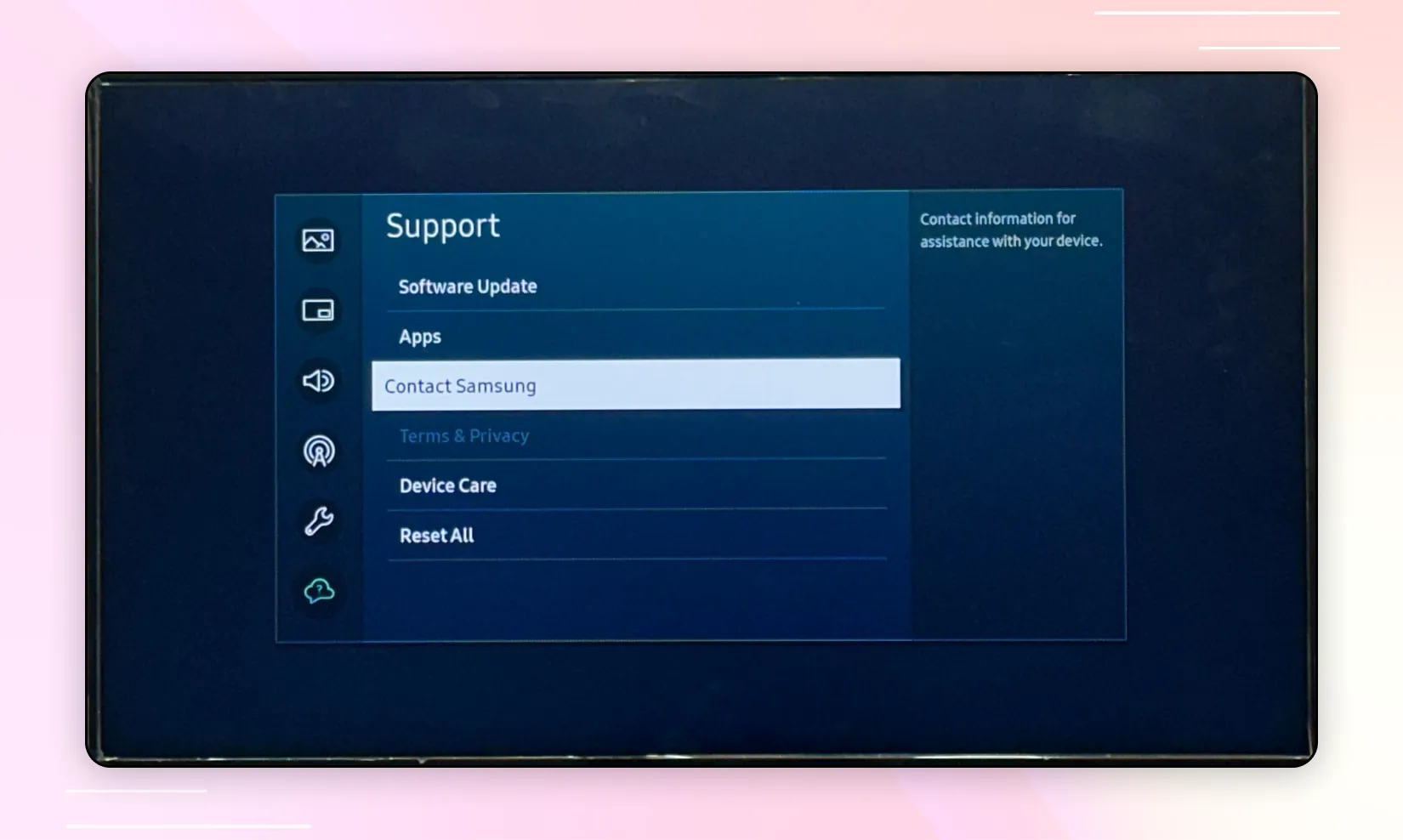

   Go to the Support section, then select Contact Samsung.



5. 📄 Check Product Details and Tizen Version:

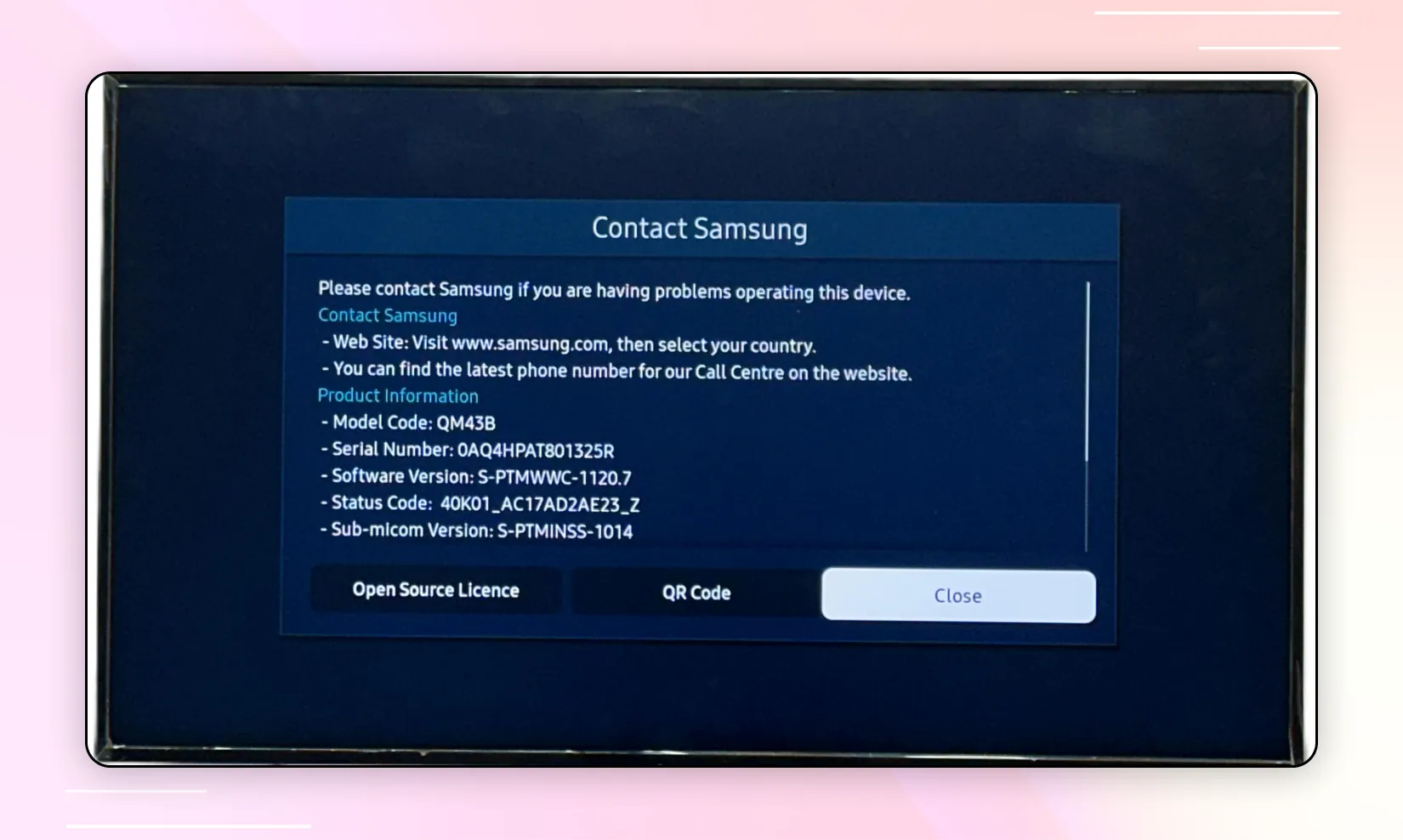

   Under Contact Samsung, view the product information to get the model code.
   Refer to this link to check the Tizen version: Tizen Supported Devices.



6. 📥 Download the Player App Based on Your Tizen Version:
   For Tizen OS v4-6.5: Download Here
   For Tizen OS v7.0: Download Here

7. 🔙 Return to the System Menu:

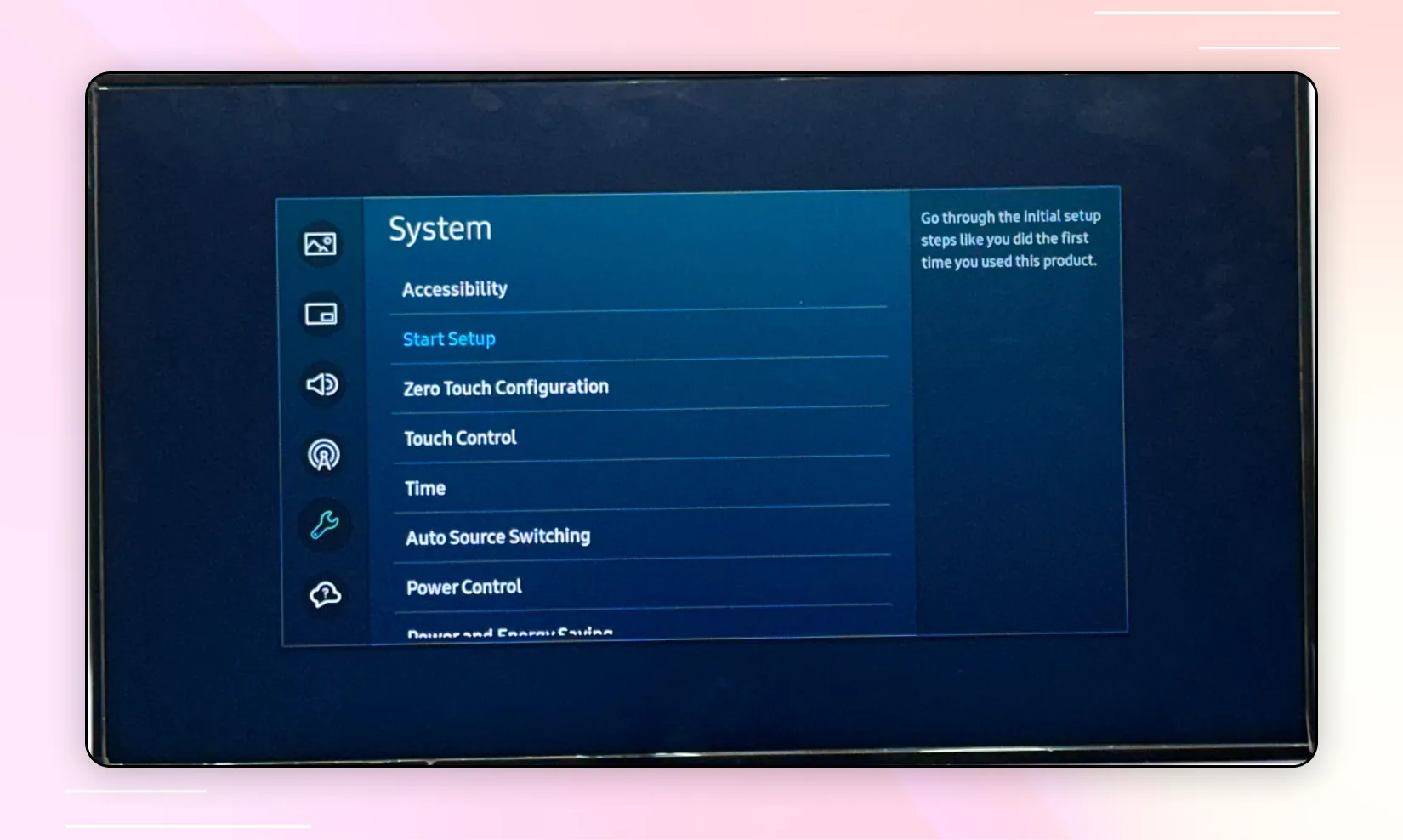

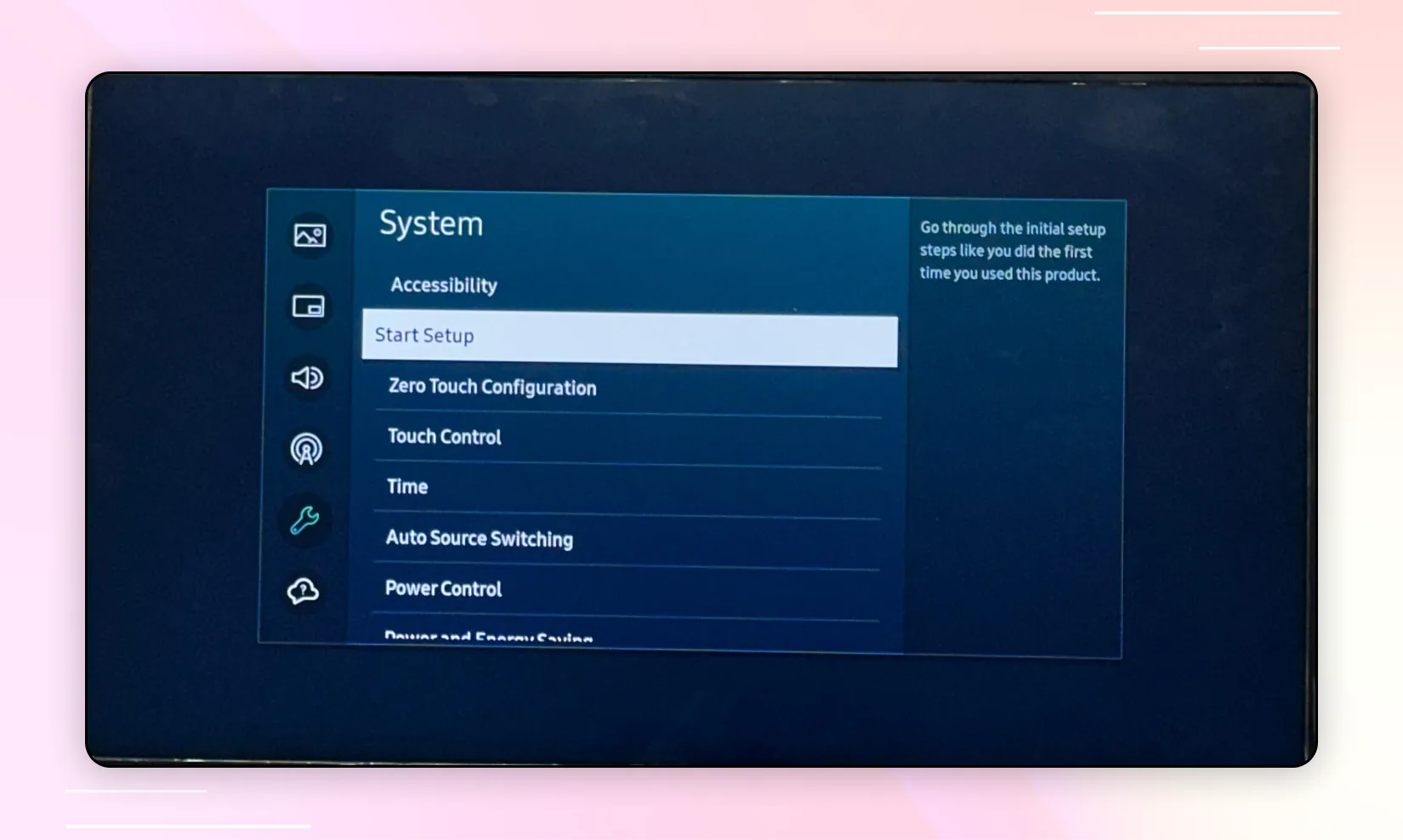

   Choose the System option and select Startup Setup.



   Set your PIN (default PIN is 000000).

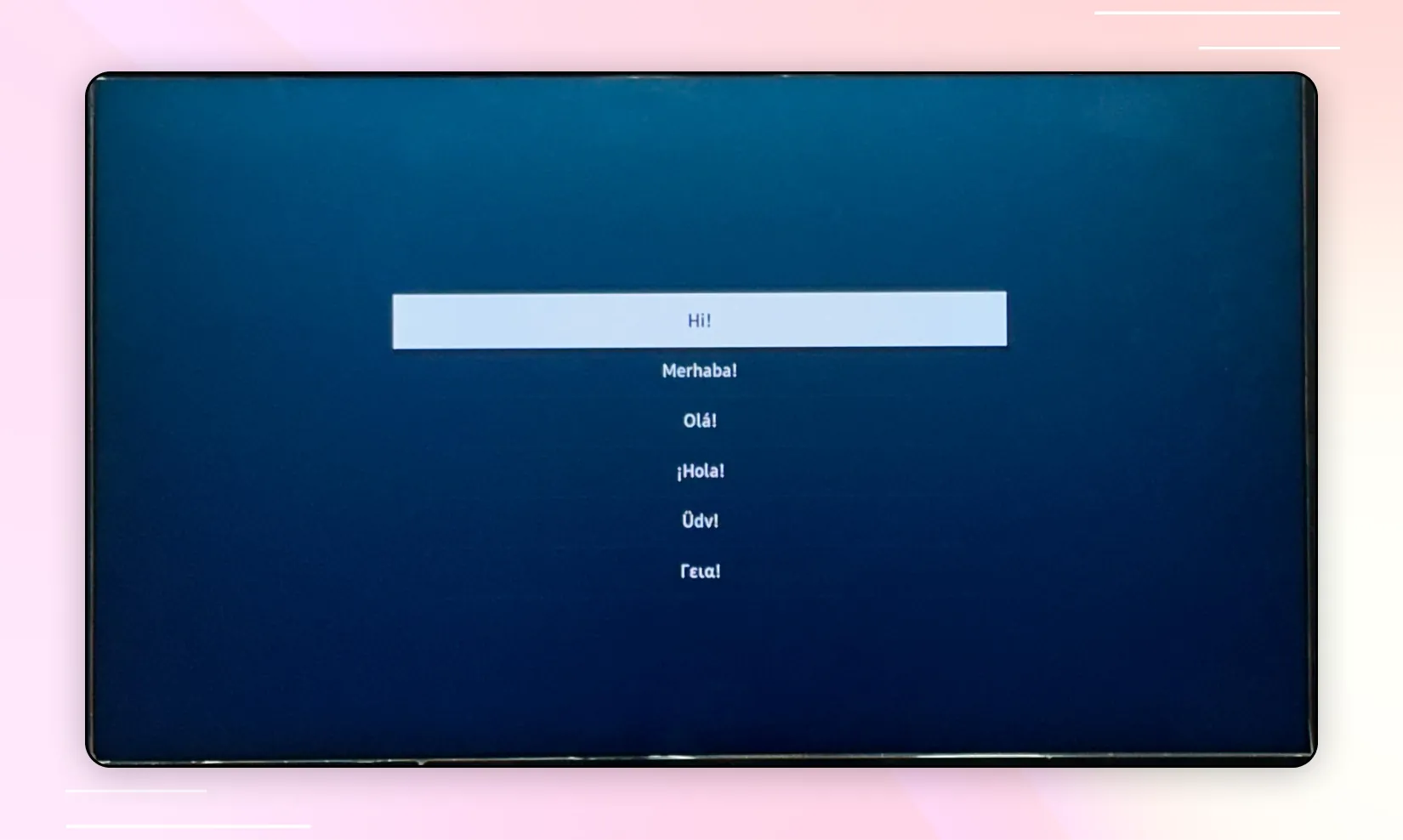

   Click Enter and set the language to English.

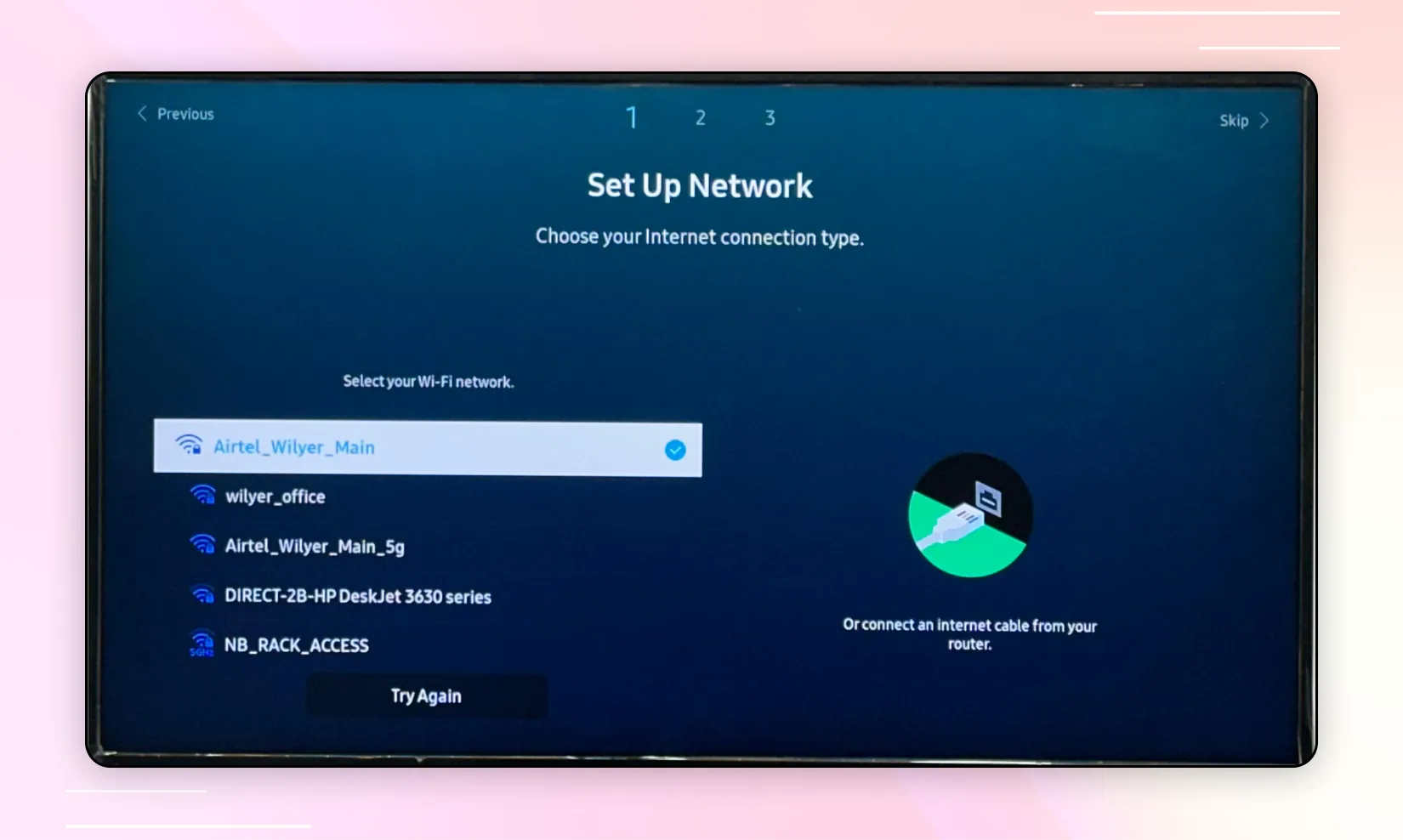

8. 🌐 Configure Network Settings:
   Connect to your Wi-Fi network as per your setup requirements.

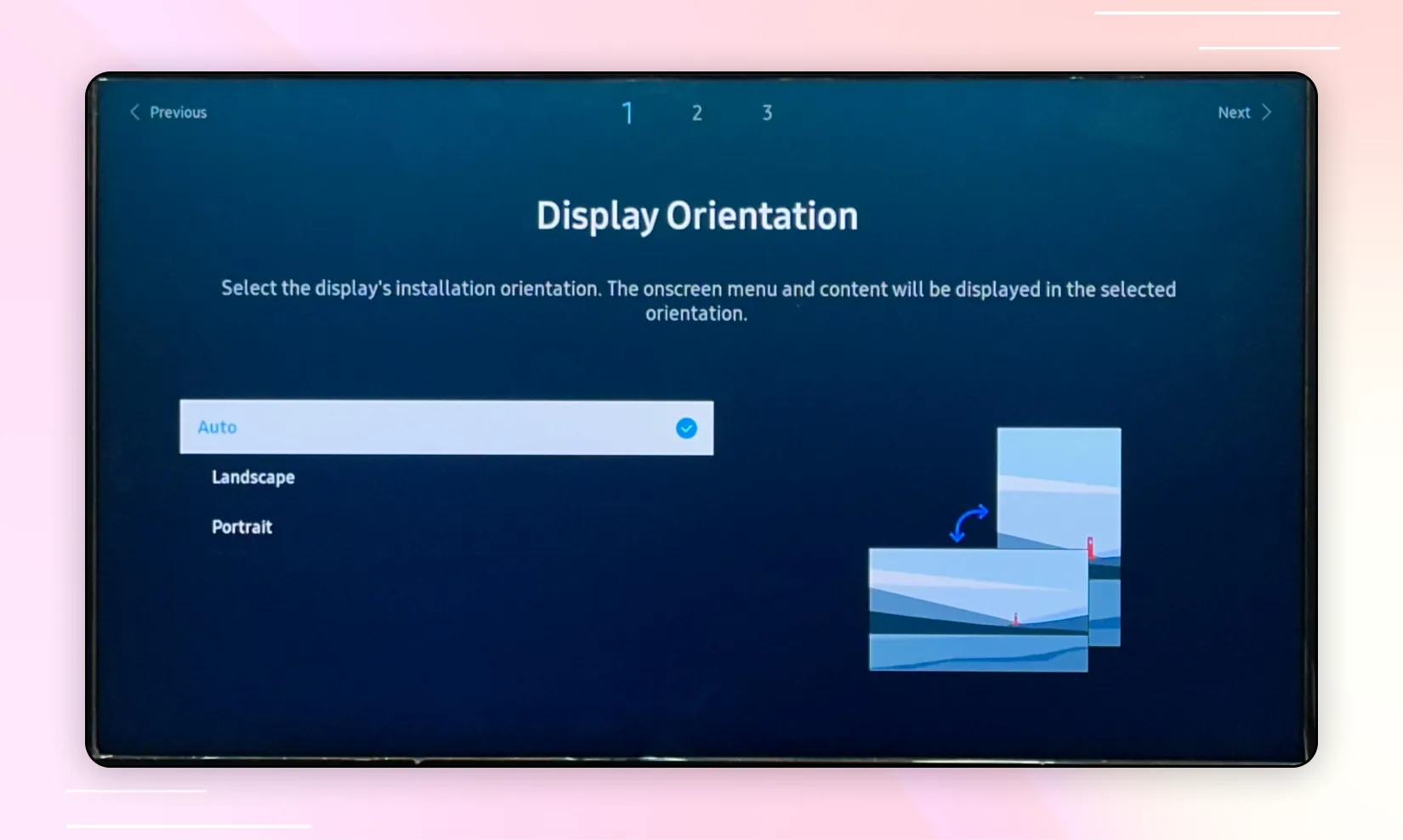

9. 📐 Set Display Orientation:
   Choose the display orientation: Landscape, Auto, or Portrait as per your choice.

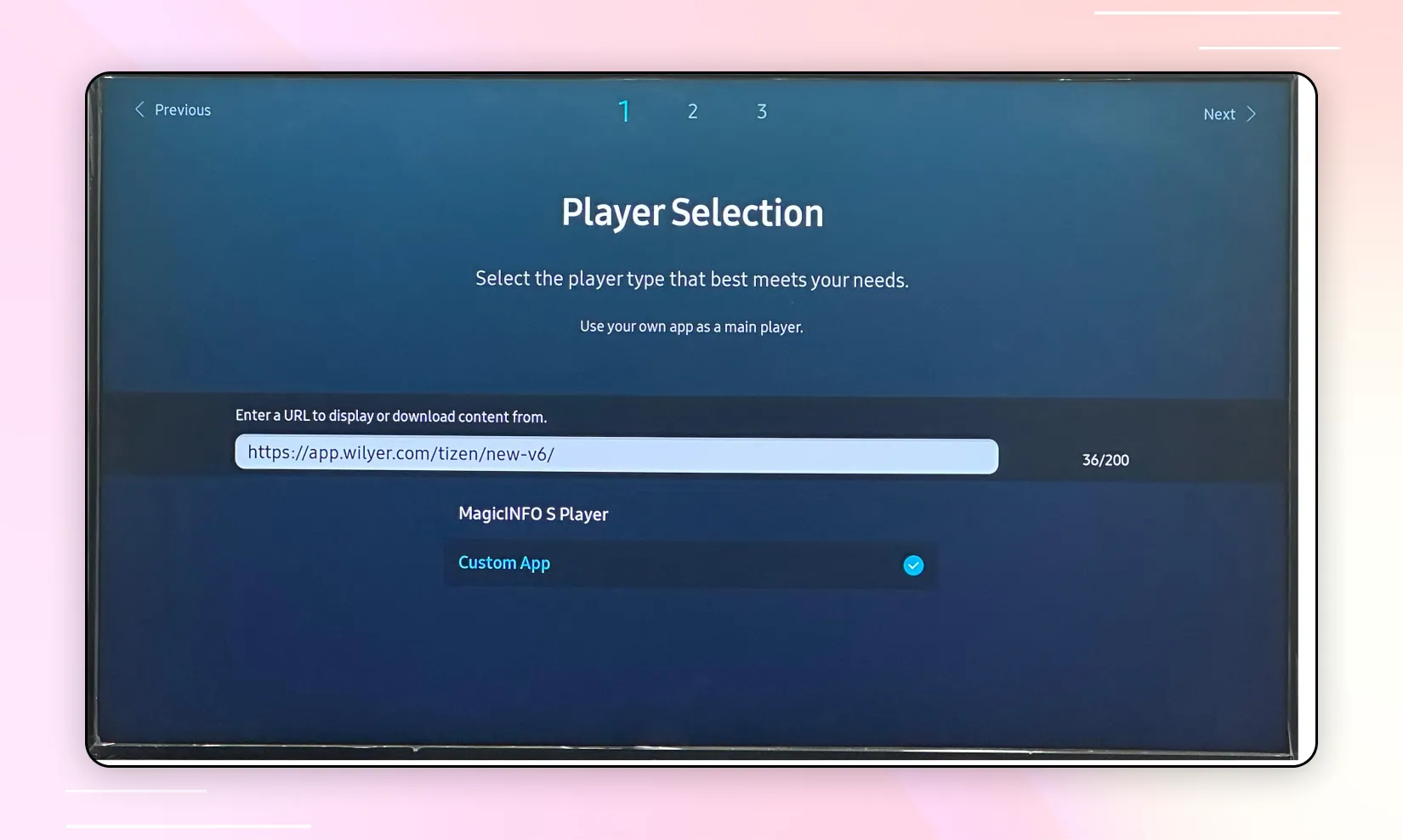

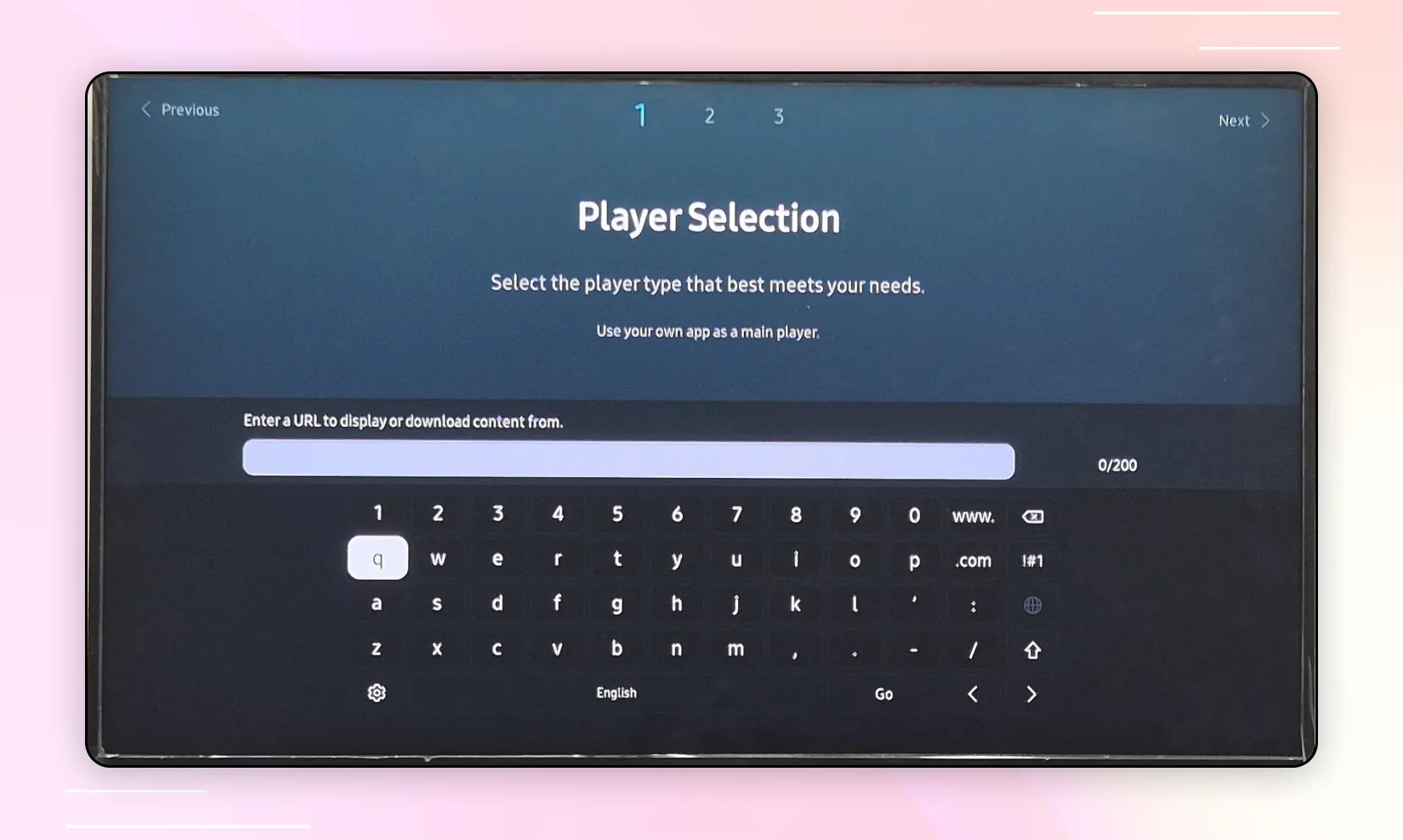

10. 📦 Choose Player Section:
    Select Custom App from the Player Section menu.
    Enter the URL for your app as per the Tizen version mentioned in Step 6.



11. ✔️ Proceed to Install:
    Click the Right Arrow Icon to move forward.

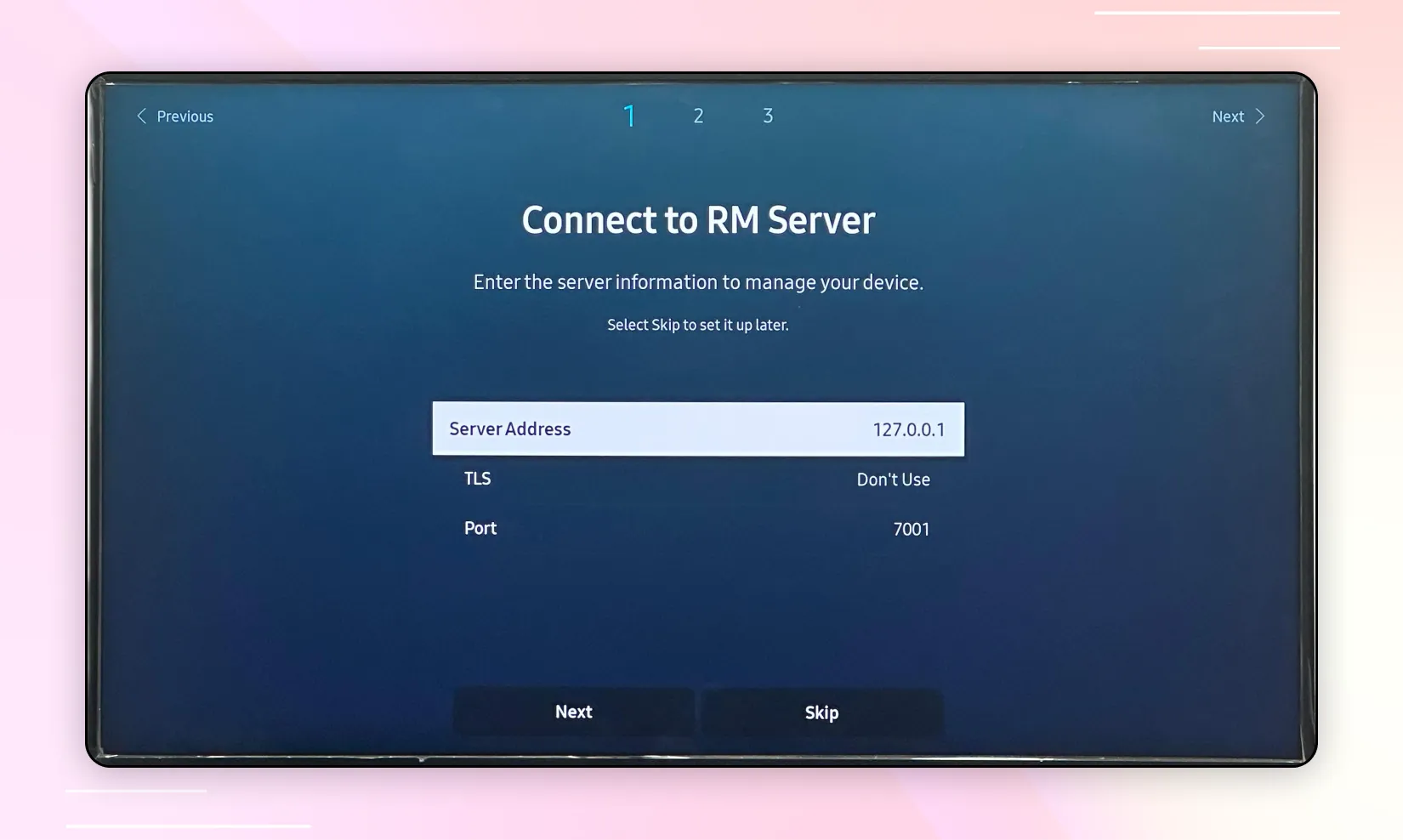

12. 🖥️ Connect to RM Server:
    Leave the RM server settings as default and skip this step.

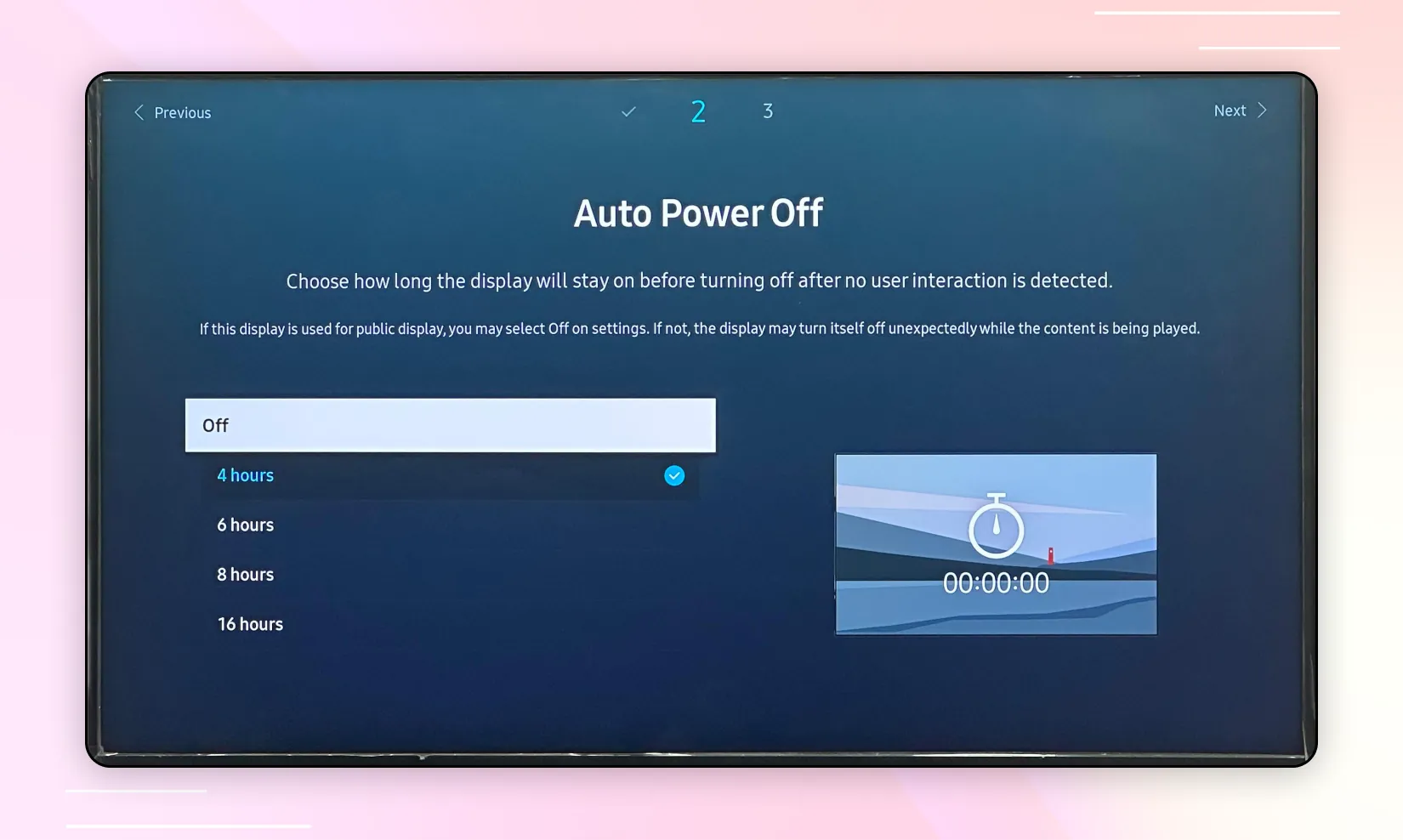

13. 🔄 Set Auto Power Off:
    Turn Auto Power Off to Off, or configure it as needed.

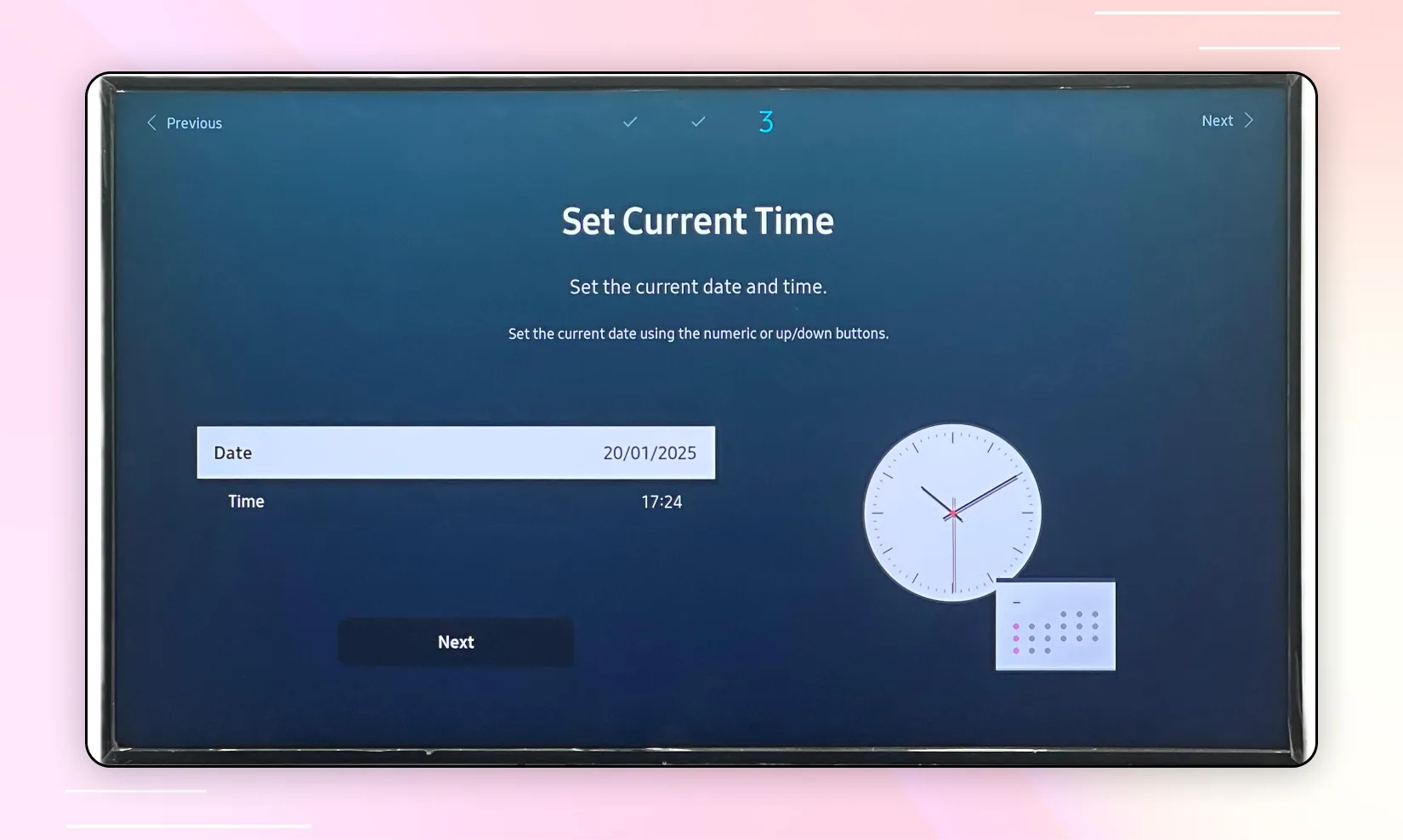

14. 🕒 Set Current Date & Time:
    Ensure the correct date and time are configured. Update if necessary.

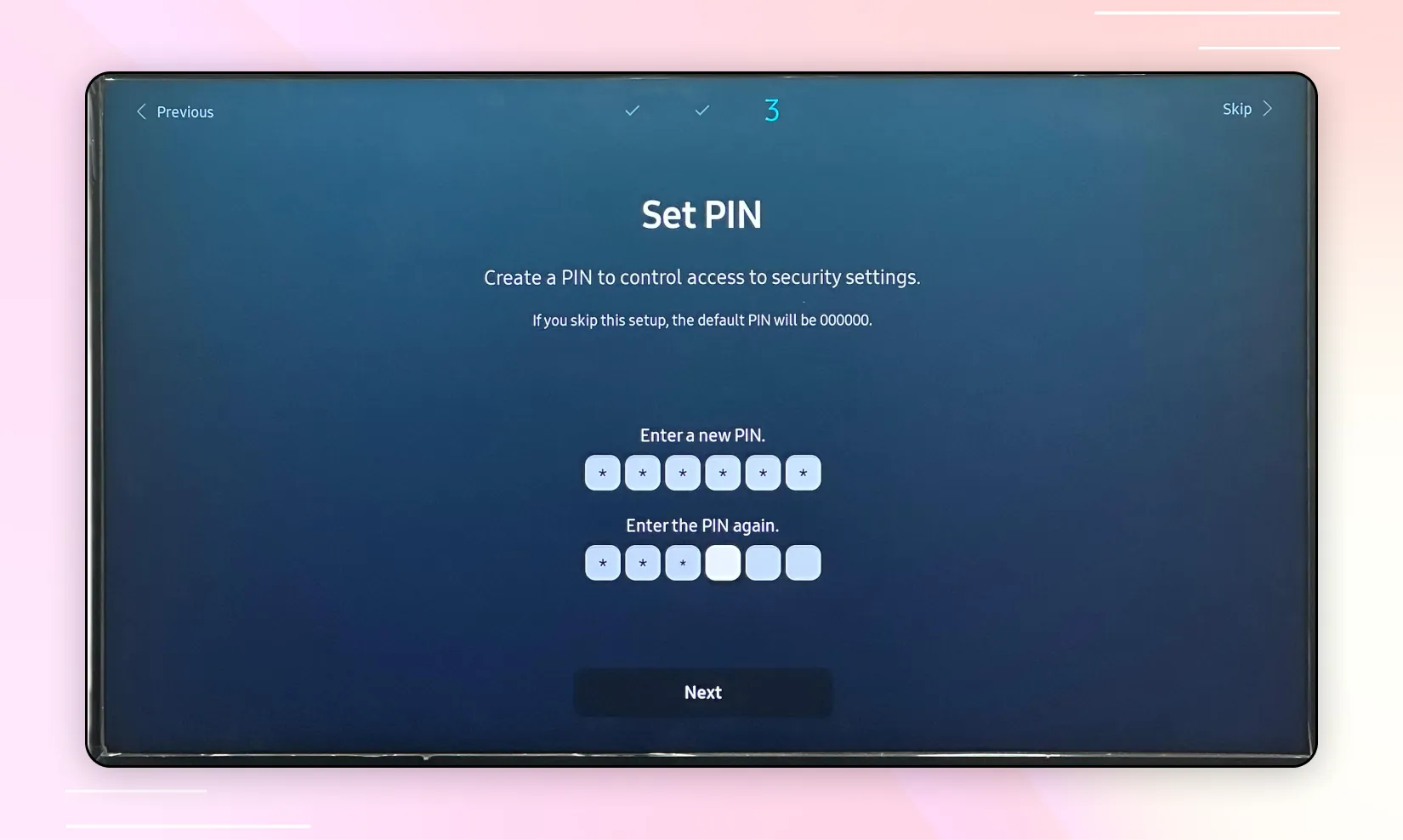

15. 🔐 Set a PIN:
    Set a PIN of your choice (default PIN is 000000).



    If connected via HDMI, click on the Source option.

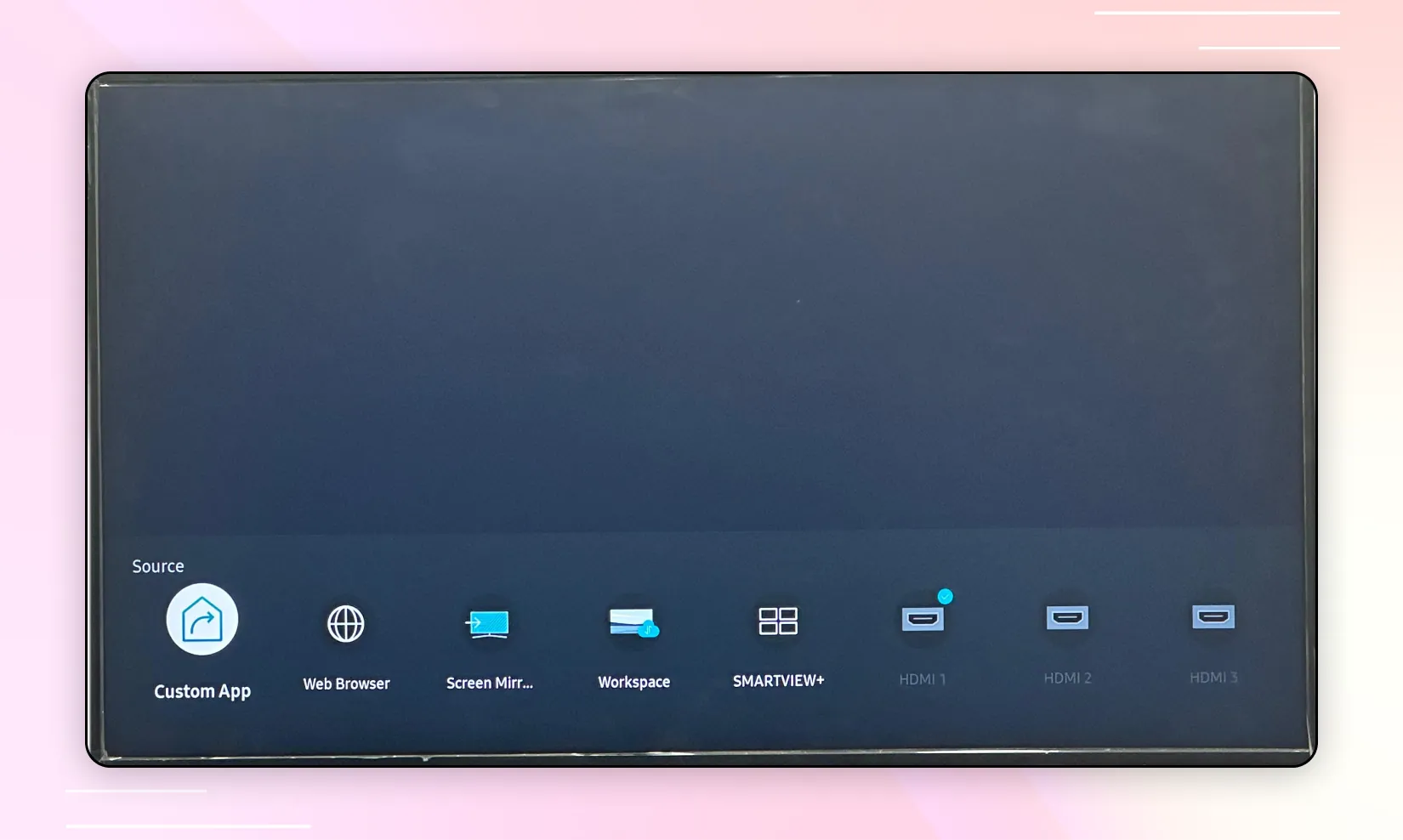

16. 💻 Go to Custom App:
    Navigate to Custom App and press OK.
    The app will be automatically installed.



17. 🖥️ Pair the Screen:
    A pairing code will appear on the screen.
    Follow the pairing documentation: Pair a New Screen.
18. 🎶 Publish a Playlist:
    Once the screen is paired, publish a playlist to complete the setup.
    Follow the playlist publishing documentation: Publish a Playlist.

Now your TizenOS TV is fully configured, and the Player App is installed and ready for use! 🎉

Remove the Existing Player App on TizenOS 📺

Steps to Remove:-

(If the existing Player App is playing, press Exit to stop it.)

1. 📋 Open the Menu:
   Press the Menu button on the remote control to access the settings menu.



2. ⚙️ Select System:
   Navigate to the System option.

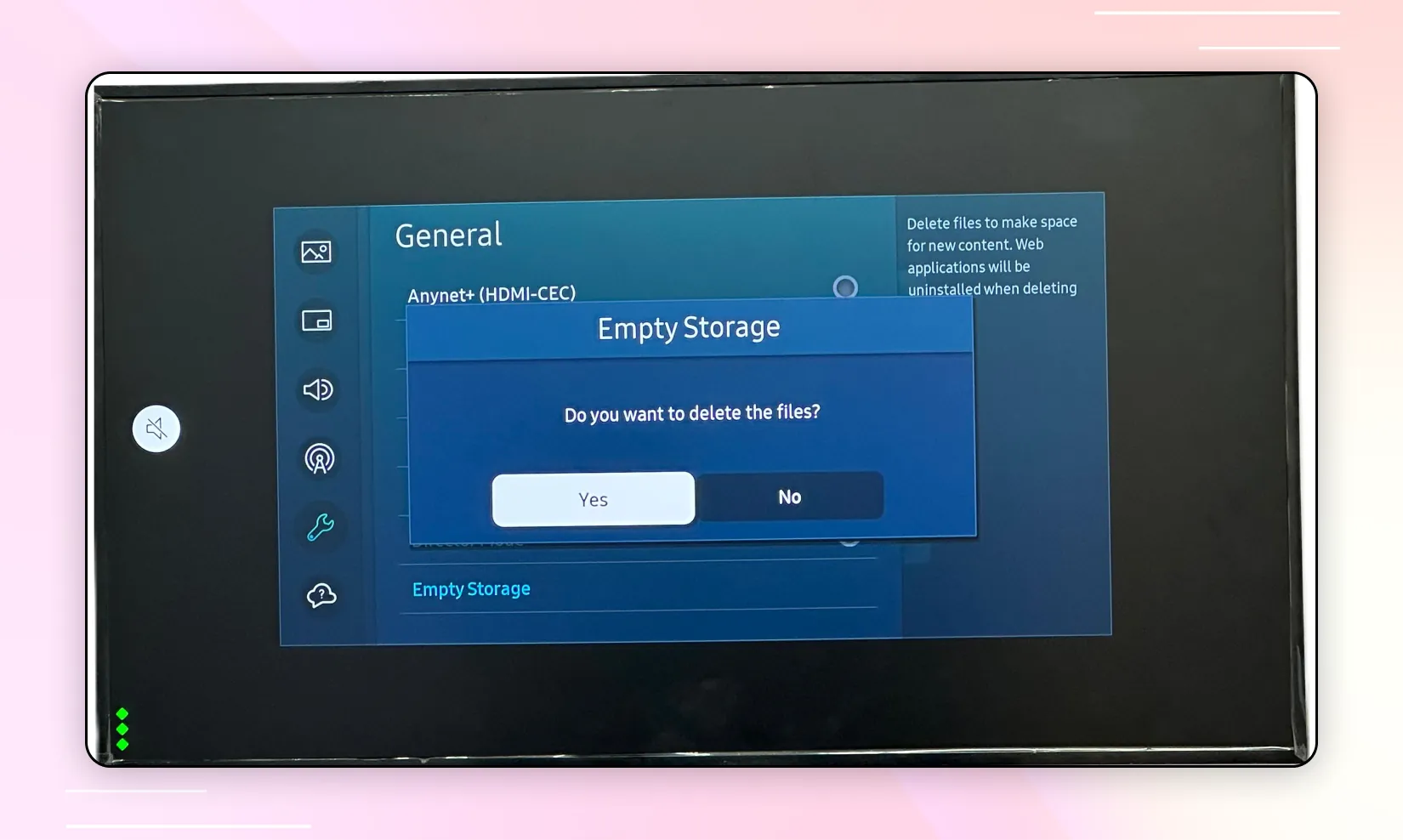

3. 🗑️ Empty Storage:


   Move to the General section and select the Empty Storage option.



   A confirmation modal will appear. Confirm by selecting Delete All Files.

4. 🔙 Return to Support Options:


   Press the Menu button again to go back to the settings menu. Navigate to the Support section.

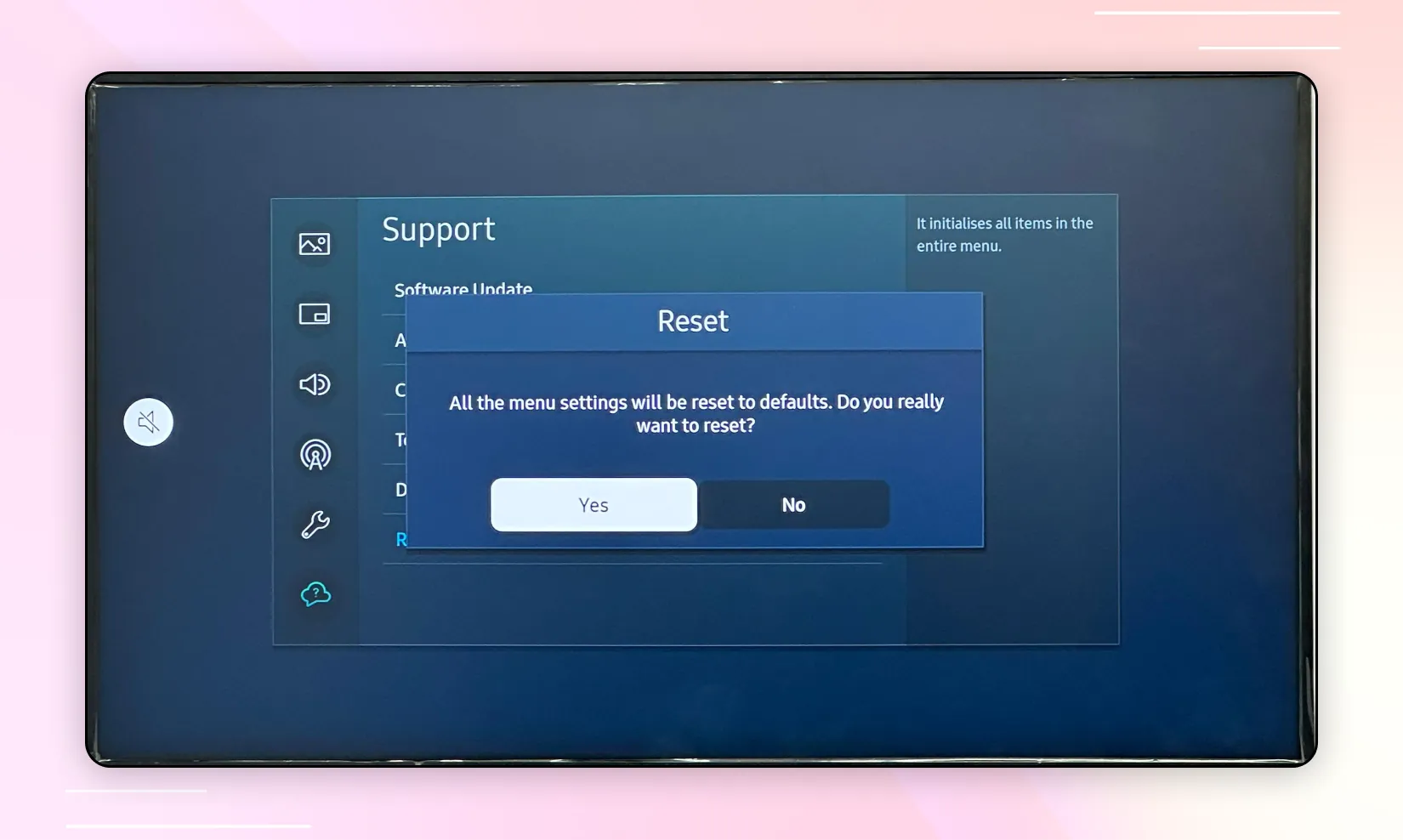

5. 🔄 Reset All Settings:
   Select the Reset All option. A confirmation modal will appear. Confirm the reset to restore factory settings.

After completing these steps, the existing Player App and all associated data will be removed from your TizenOS TV.
